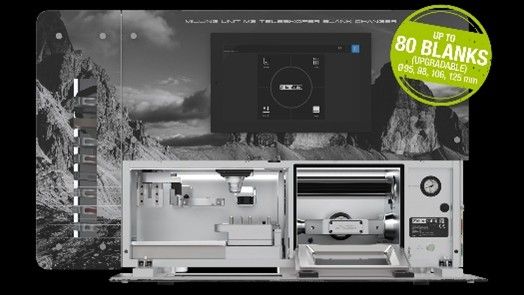

Moreover, the wet and dry processing function permits the milling of all common soft and hard dental materials; whereas the built-in Teleskoper Orbit SelfLock (Ø 125 mm) allows the processing of material blanks with a diameter of 95 mm, 98 mm, 106 mm and 125 mm. Thanks to special holders, also glass ceramics blanks, Raw-Abutment^® blanks and mini zirconia blanks (size 1) can be milled. In addition, the already well-known innovative Teleskoper functions (friction adjustment, Double Milling, Stop & Go) can be performed.

Zirkonzahn equips the M6 with the new Performance Spindle by default. Thanks to a specially developed Permanent Magnet Synchronous Motor (PMSM) which is optimally adapted to the milling unit, this spindle can reach a maximum torque of 200 Ncm at speeds of 6.000 to 50.000 rpm with a peak power of 2.5 kW. In addition, the milling unit is provided with a contamination-protected tool chamber which is separate from the milling chamber and features an automatic tool changer function. The two magazines with 30 slots each ensure a safe and tidy storage of up to 60 milling burs. The tools are automatically checked for type or damage before and after each milling process.

Always developing innovative technologies and searching for smart, unconventional solutions, all company’s hardware components and software modules generate open data formats (e.g. STL, OBJ) which are therefore compatible with all open CAD systems, milling units or 3D printers. Of course, also open data (scans or design files) from other manufacturers can be processed with Zirkonzahn wide range of milling units and devices. In this way, customers can benefit from a complete system which can be personalised and upgraded according to different combination possibilities to meet all one’s requirements. Moreover, Zirkonzahn CAD/CAM system design can be customised on request in all colours and different styles, expressing every attitude.
