W&H Autoclave Range
)
)
)
)
)
)
From The Lisa Mini to the Lara XXL W&H have you covered, with great cycle times, touch displays and a wealth of features
The range:
- QHW107 - Lisa 17 VA131 (19) Steriliser
chamber size 17L / Power Supply 200-240 V AC; 50/60 hz; 10A / Power Consumption 2.0-2.4kW / Overall Dimensions 465x452x634mm / Weight 46kg / Main/Used Water tanks 4.8/4.8L / Working Range 7-15 cycles / Useable chamber space (WxHxD) 195x195x312mm / Connection type 1 ethernet port, 5 USB ports, integrated automatic water filling valve
- QHW108 - Lisa 22 VA131 (19) Steriliser
chamber size 22L / Power Supply 200-240 V AC; 50/60 hz; 10A / Power Consumption 2.0-2.4kW / Overall Dimensions 465x452x634mm / Weight 47.2kg / Main/Used Water tanks 4.8/4.8L / Working Range 7-15 cycles / Useable chamber space (WxHxD) 195x195x400mm / Connection type 1 ethernet port, 5 USB ports, integrated automatic water filling valve
- QHW017 - Lyla S Type Steriliser 17L (Lyla RIN-210 50Hz 220v)
chamber size 17L / EN13060 Classification S Type / Power Supply 200-240 V AC; 50/60 hz; 10A / Overall Dimensions 465x452x646mm / Weight 40kg / Tray capacity with standard rack - 5 std 285x185 / Total tray loading surface with standard rack 2636cm2 / Extendable drying time by user / Delayed cycle start
- QHW018 - Lyla S Type Steriliser 22L (Lyla RIN-210 50Hz 220v)
chamber size 22L / EN13060 Classification S Type / Power Supply 200-240 V AC; 50/60 hz; 10A / Overall Dimensions 465x452x646mm / Weight 41kg / Tray capacity with standard rack - 5 std 375x185 / Total tray loading surface with standard rack 3468cm2 / Extendable drying time by user / Delayed cycle start

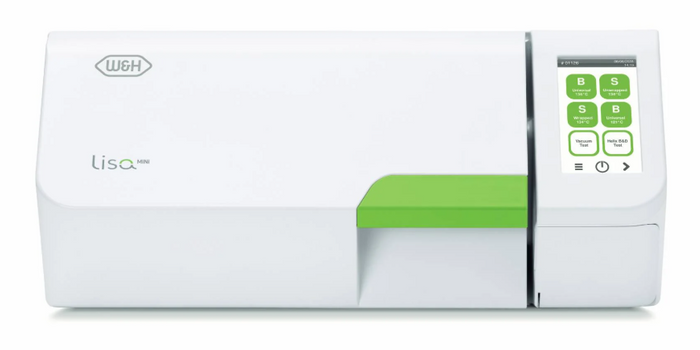

- QHW039 - Lisa Mini Steriliser 5L
Easy to use with touch screen display, intuitive menu structure and auto water filling, with multiple built in ports and ethernet connection guarantees connection with ioDent and W&H Steri app. Whilst 5L has integrated vacuum pump. Overall dimensions (WxHxD) 440x20x666mm

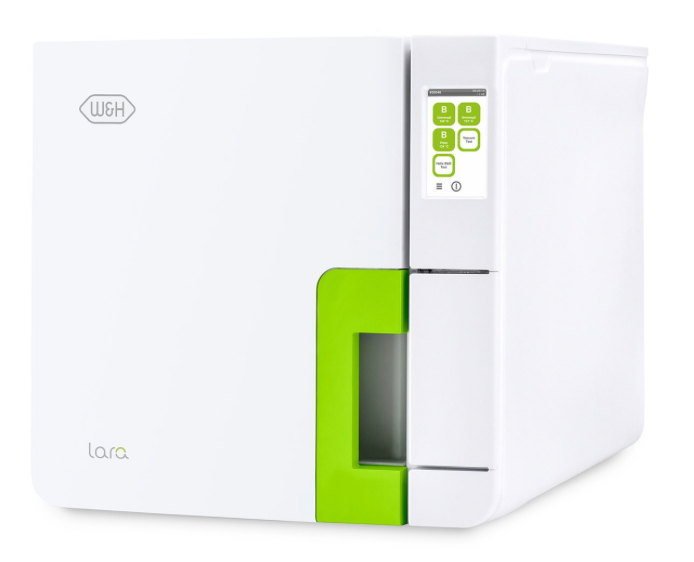

- QHW104 - Lara 17L Steriliser
- QHW106 - Lara 22L Steriliser
38 min cycle time / 8GB USB data logger
- QHW105 - Lara 28L Steriliser
Average cycle time 41 minutes - 2kg load fast cycle 25 minutes / 6 trays chamber capacity / B Type / Power supply 200-240V AC; 50/60 Hz; 10A / Overall Dimensions (WxHxD) 492x455x614mm / Weight 54kg
- QHW115 - Lara 38L Steriliser
3kg load cycle time approx. 40 minutes / 6 tray chamber capacity / B Type / Power supply 200-240V AC; 50/60 Hz; 10A / Overall Dimensions (WxHxD) 492x455x797mm / Weight 61kg
